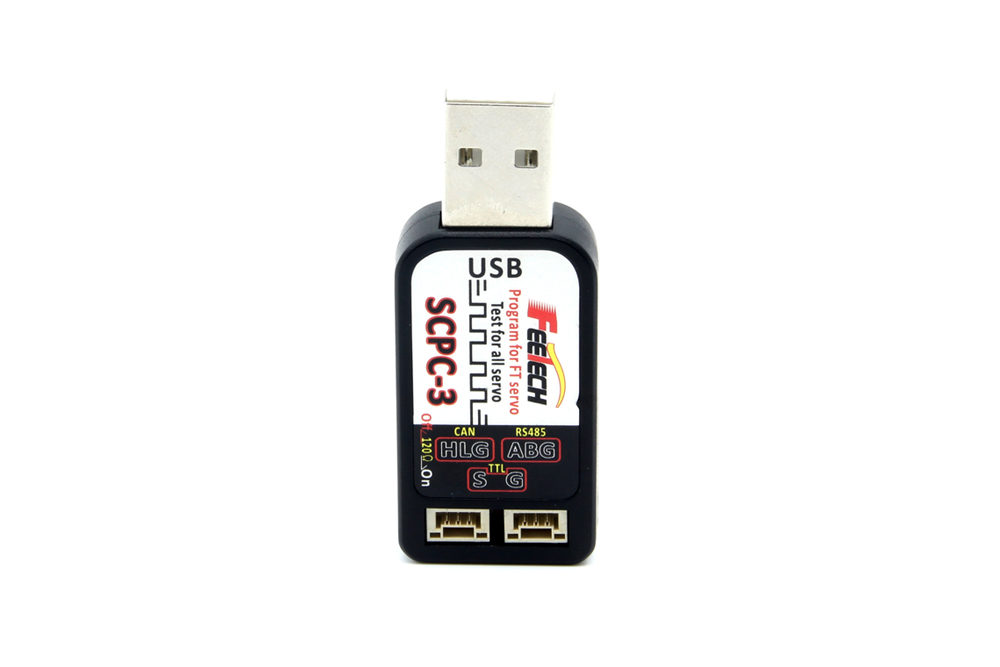

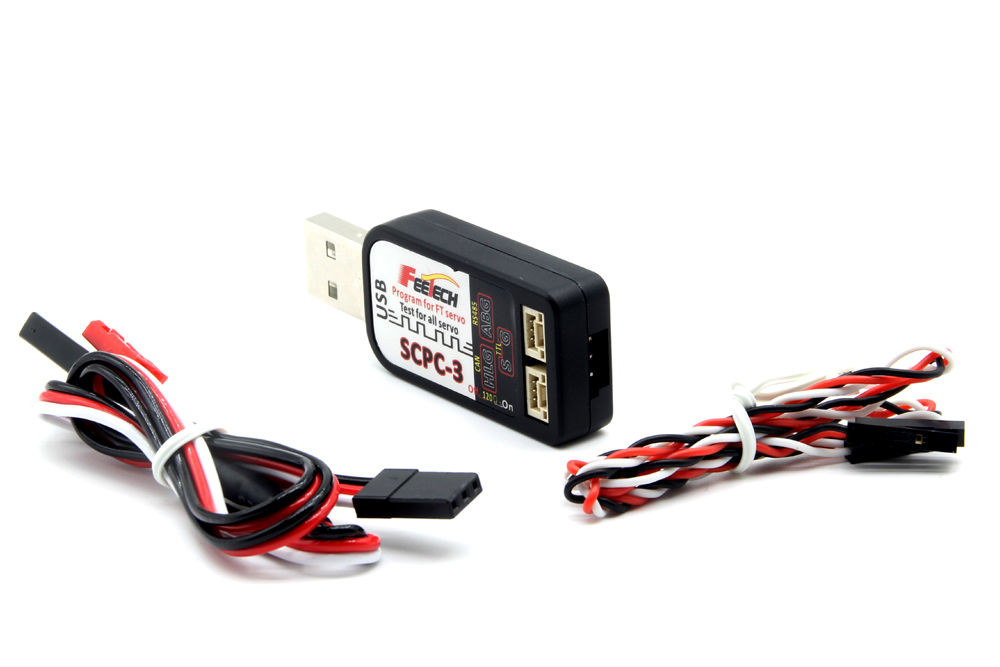

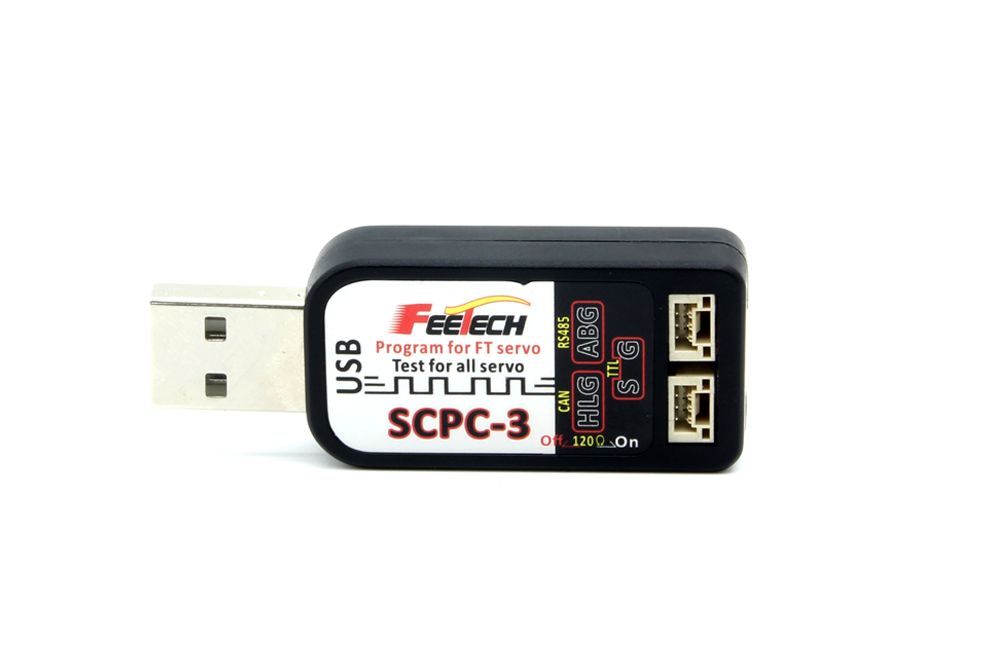

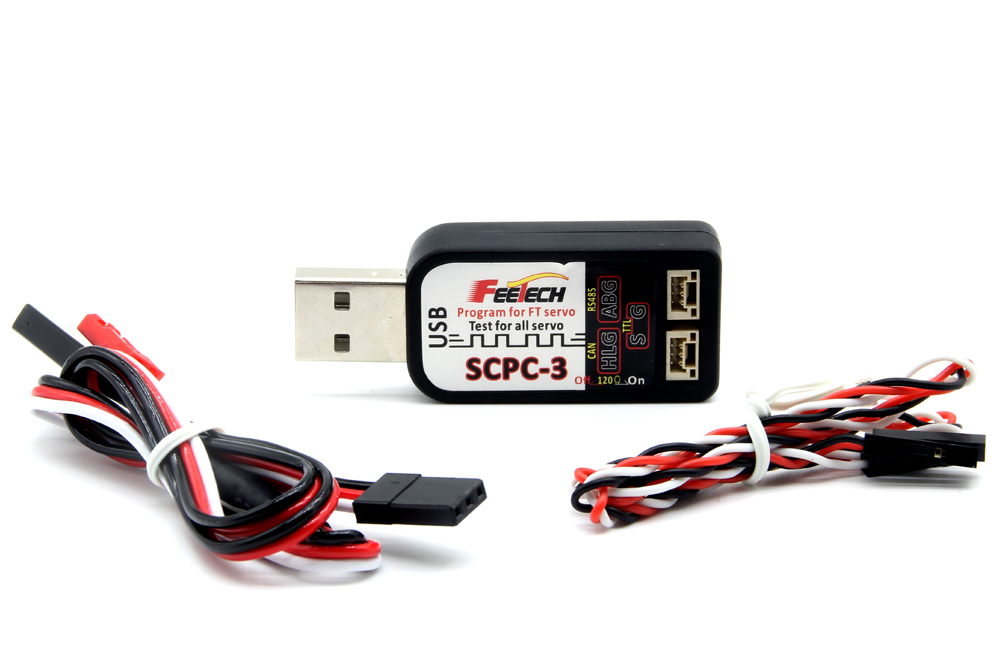

USB programming card adjusts the CAN bus and PWM pulse signal servo
Price: 0 $
- Parameters
- Downloads
-
Product model:FE-SCPC-C003

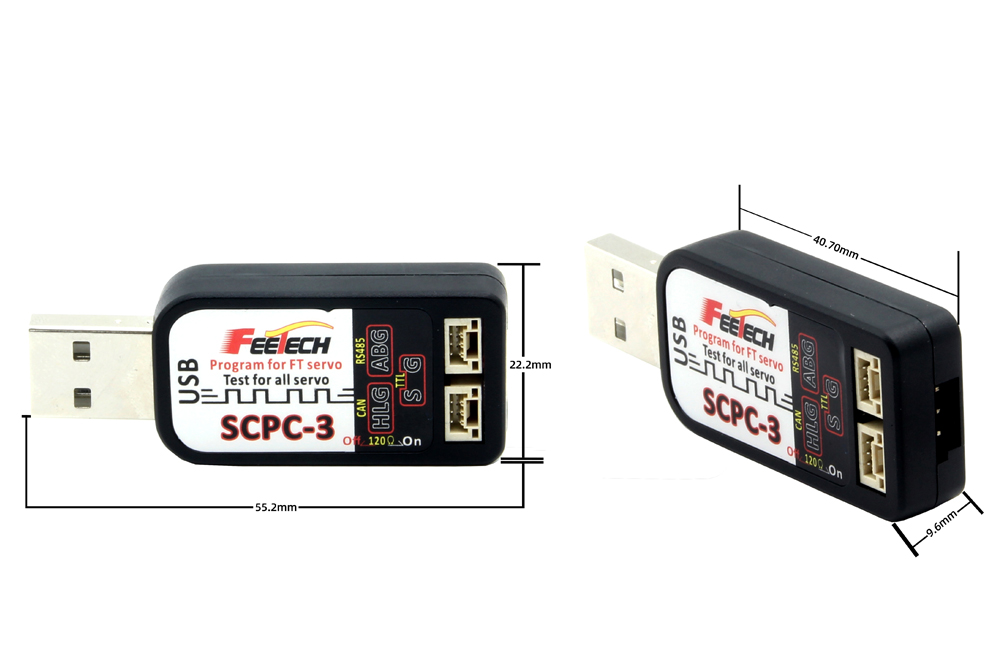

Size:55.2*22.2*9.6mm
Operating voltage: 5V +/- 0.2V (USB供电)
Baud rate:50bps-1Mbps
USB port:USB-A（USB 2.0）
Beacon lamp:RGB-LED
Product details
Adjustable DC to DC Voltage Regulator AJ-6A-JR
Features:
1. DC input 5V~30V (2S~8S li-poly).
2. DC output 5V~12V (Output voltage can be adjust by 2mm slot type screwdriver).
3. DC output current max 6A.
4. Interface like JR (Male + Female).
5. Wire length: Input wire 18 # 150 mm & Output wire 22# 100 mm.
6. Notes
6-1. Red wire is positive pole, Black wire is negative pole.
6-2. The factory default output voltage is 5V.
6-3. Use a screwdriver to adjust many ring potentiometer can change the output voltage.
6-4. After adjusts output voltage, please use voltmeter measure output voltage, and to check voltage value whether your need.
6-5. Please do not let the DC input voltage over more than 30V.
Packaging:
1. Include
AJ-6A X 1 ; 2mm slot type screwdriver X 1; Instructions X 1
2. weight
AJ-6A (25g); Packaging total weight (30g)
