L type geared motor
Price: 0 $
- Parameters
- Downloads
-
The Product Name:L type geared motor
The Product Model:FT-DC-L50
The working Voltage:3V
The current no load:150mA
The speed no load:50RPM±10%
The stall torque:3kgf.cm
The stall current:750mA
Product details
| 型号Model: | FT-DC-L50 | |||
| 产品名称Product Name: | L型减速电机/L type geared motor | |||
| 存储温度Storage Temperature Range: | -30℃～80℃ | |||
| 运行温度Operating TemperatureRange: | -15℃～70℃ | |||
| 工作电压Operating Voltage Range: |
3V |
|||
| 空载电流 Runnig current(at no load) : |
150mA |
|||
| 空载速度No load speed: | 50RPM±10% | |||
| 堵转扭矩 Peak stall torque: | 3kgf.cm | |||
| 堵转电流Stall current: |
750mA |
|||
| 型号Model: | FT-DC-L95 | |||
| 产品名称Product Name: |
L型减速电机/L type geared motor |
|||
| 存储温度Storage Temperature Range: | -30℃～80℃ | |||
| 运行温度Operating Temperature Range: | -15℃～70℃ | |||
| 工作电压Operating Voltage Range: | 3V | |||
| 空载电流 Runnig current(at no load) : |
70mA |
|||
| 空载速度No load speed: | 90RPM±10% | |||
| 堵转扭矩 Peak stall torque: |
1.2kgf.cm |
|||
| 堵转电流Stall current: |
500mA |
|||

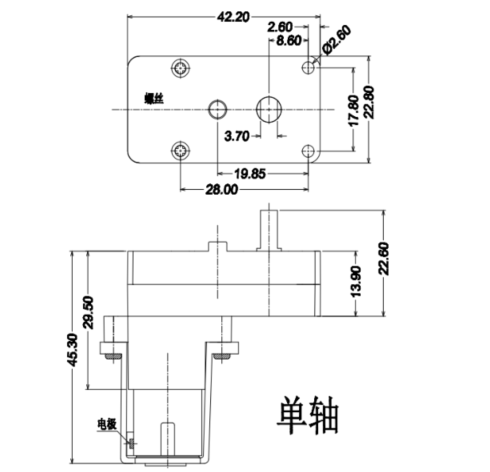

| 外形图The Drawings: |
|
|||
