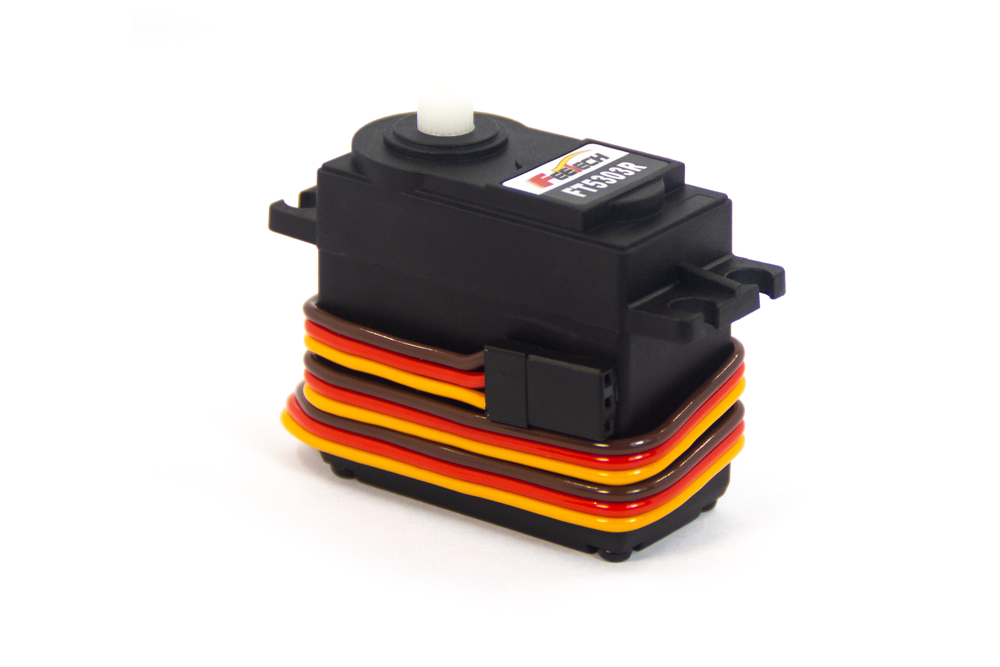

3kg continuous turn digital servo FT5303R
Price: 0 $
- Parameters
- Downloads
-
Product Model No:FT5303R
Structure Size:40.15*20.15*37.55mm
Product Weight:43.8g
The Maximum Speed:81RPM@6V
The Stall Torque:3.5kg.cm@6V
The Rotation Degree:360°Continuous rotation
Product details
|
型 号 Model： |
FT5303R |
|
产品名称 Product Name: |
6V 3.0公斤 360度连续转数码舵机 / 6V 3.0kg.cm 360 Degree Continuous Rotation Digital Servo |
| 存储温度 Storage Temperature Range | -30℃～80℃ |
| 运行温度 Operating Temperature Range: | -15℃～70℃ |
|
尺寸 Size: |
A：40.15mm B：20.15mm C：37.55mm |
|
重量 Weight: |
43.8g |
| 齿轮类型 Gear type: | Plastic Gear(POM ) (Gear Ratio=210:1) |
| 机构极限角度 Limit angle: |
NO limit |
| 轴承 Bearing: | 2 Ball bearings |
| 出力轴 Horn gear spline: | 25T |
| 摆臂 Horn type: | Plastic,POM |
| 外壳 Case: | Nylon & Fiberglass |
| 舵机线 Connector wire: | 300mm ±5 mm（ JR）(Brown ,Red and Orange) |
| 马达 Motor: | Metal brush motor |
|
工作电压Operating Voltage Range: |
3-6V |
| 静态电流 Idle current(at stopped) | 5mA |
|
空载速度 No load speed: |
81RPM@6V |
| 空载电流 Runnig current(at no load) : | 150 mA @6V |
|
堵转扭矩 Peak stall torque: |
3.5kg.cm@6V |
|
额定扭矩 Rated torque: |
1kg.cm@6V |
| 堵转电流 Stall current: | 1100mA@6V |
| 旋转角度 Running degree: |
360°Continuous rotation |
| 旋转方向 Rotating direction |
Counterclockwise (when 1500～2000 µsec) Stop (1500±20 µsec) clockwise (when 1500～1000 µsec) |
| 详细规格书下载Download detailed specifications: | |

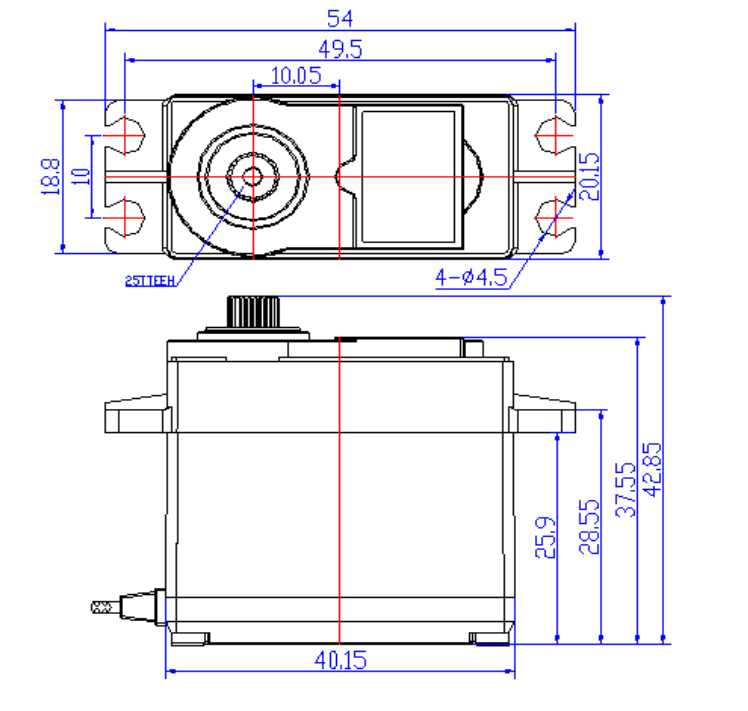

| 外形图 The Drawings: |
