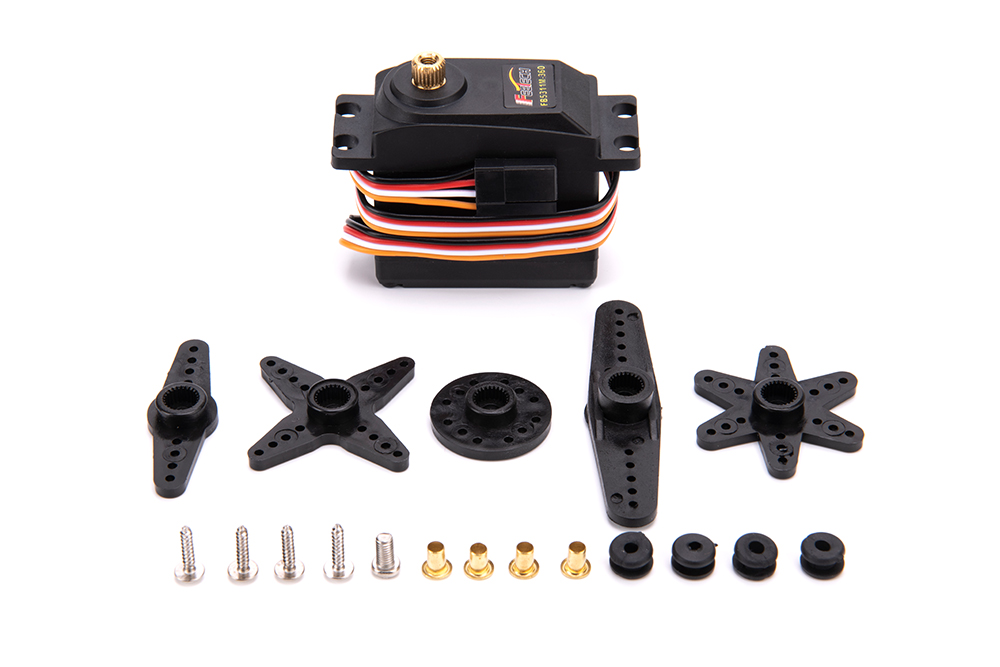

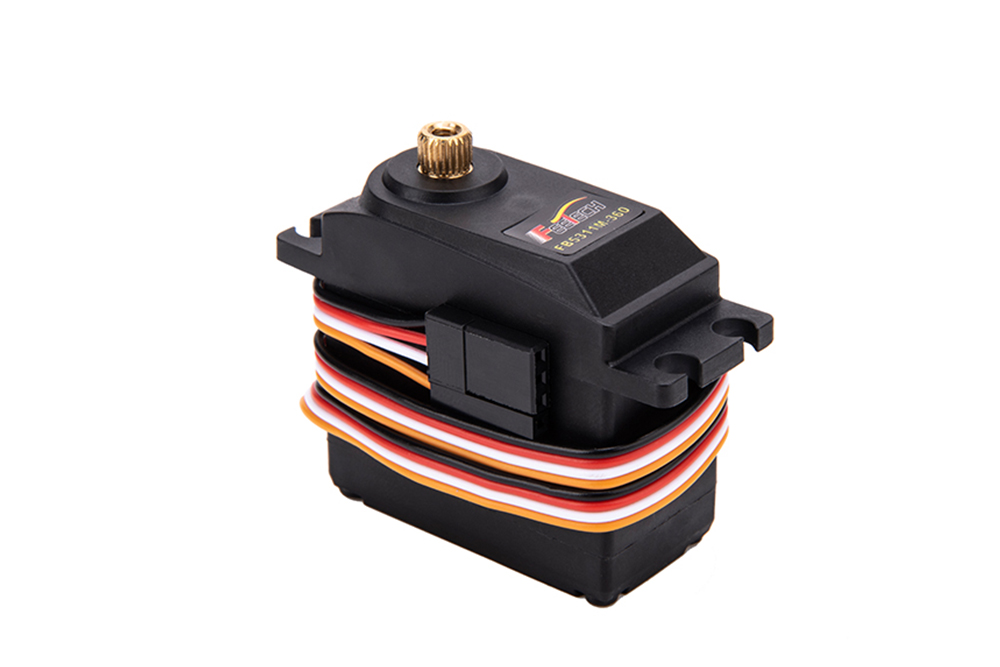

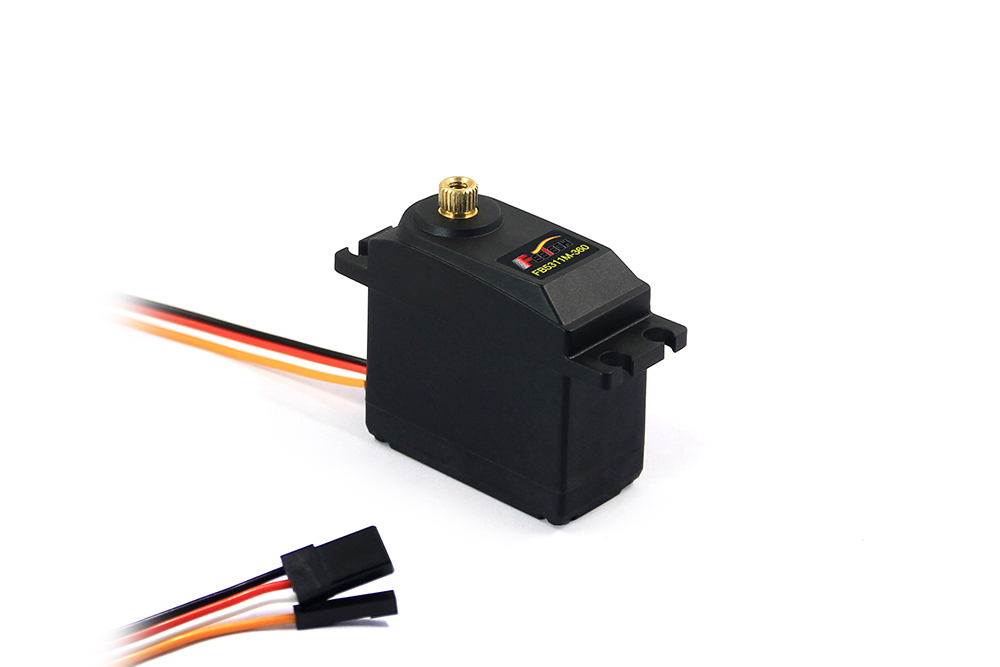

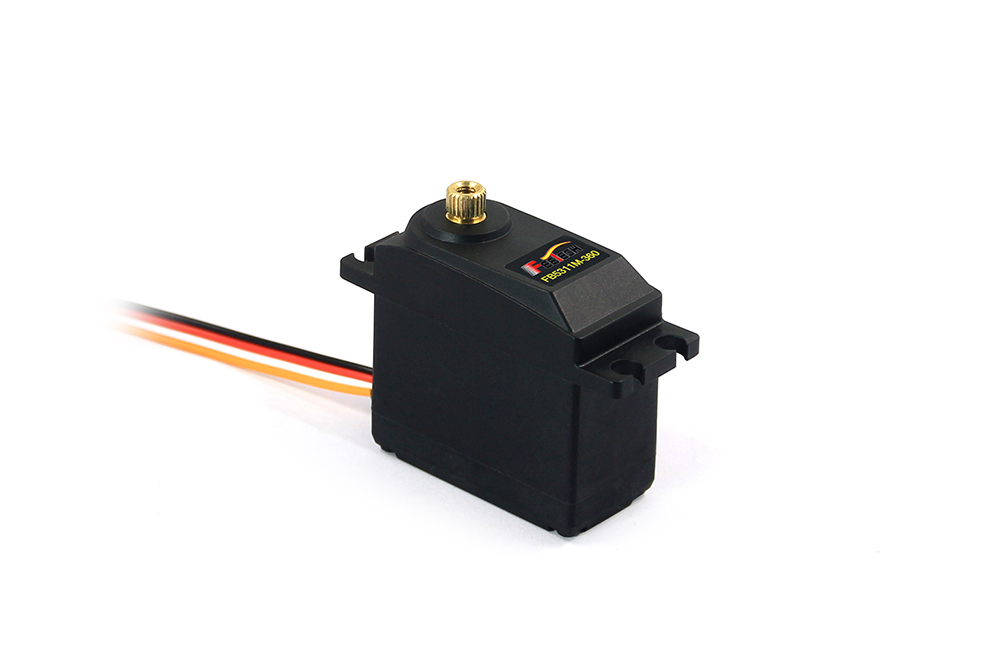

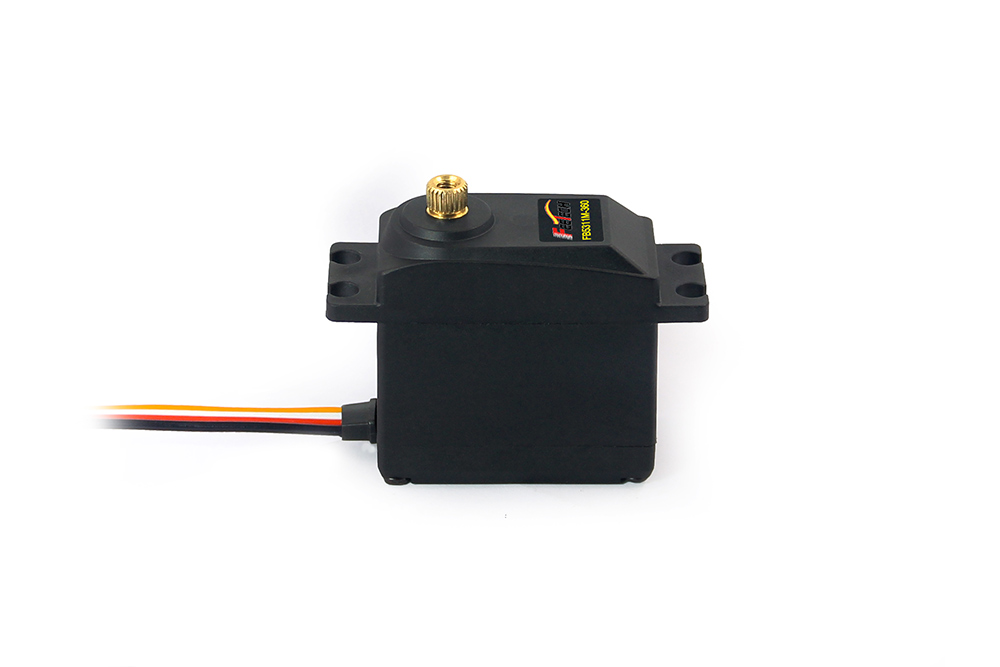

6V 15kg.cm digital feedback servo FB5311M-360
Price: 0 $
- Parameters
- Downloads
-
Product Model No:FB5311M-360
Structure Size:40.1*20.1*38.8mm
Product Weight:65.5± 1g
The Maximum Speed:50RPM@6V
The Stall Torque:15.5kg.cm@6V
The Rotation Degree:360°Continuous rotation
Product details
|
型 号 Model： |
FB5311M-360 |
|
产品名称 Product Name: |
6V |
| 存储温度 Storage Temperature Range | -30℃～80℃ |
| 运行温度 Operating Temperature Range: | -15℃～70℃ |
|
尺寸 Size: |
A：40.1mm B：20.1mm C：38.8mm |
|
重量 Weight: |
65.5± 1g |
| 齿轮类型 Gear type: | 铜 Copper |
| 机构极限角度 Limit angle: |
No limit |
| 轴承 Bearing: | 滚珠轴承 Ball bearings |
| 出力轴 Horn gear spline: | 25T/5.9mm |
| 摆臂 Horn type: | Plastic,POM |
| 外壳 Case: | PA+Fiberglass |
| 舵机线 Connector wire: | 30CM |
| 马达 Motor: | Core Motor |
|
工作电压Operating Voltage Range: |
4-8.4V |
| 静态电流 Idle current(at stopped) | 6mA@6V |
|
空载速度 No load speed: |
50RPM@6V |
| 空载电流 Runnig current(at no load) : | 200 mA @6V |
|
堵转扭矩 Peak stall torque: |
15.5kg.cm@6V |
|
额定扭矩 Rated torque: |
5kg.cm@6V |
| 堵转电流 Stall current: | 1.7A@6V |
| 旋转角度 Running degree: |
360°Continuous rotation (at 500→2000μsec) |
| 旋转方向 Rotating direction |
clockwise(when 1500～2000 µsec)Stop(1500±20 µsec) Counterclockwise(when 1500～ 1000 µsec) |
| 反馈电压 Feedback Voltage | 0V-3.3V For 0°~360°(when 1500 ～2000 µsec) |
| 详细规格书下载Download detailed specifications: | |

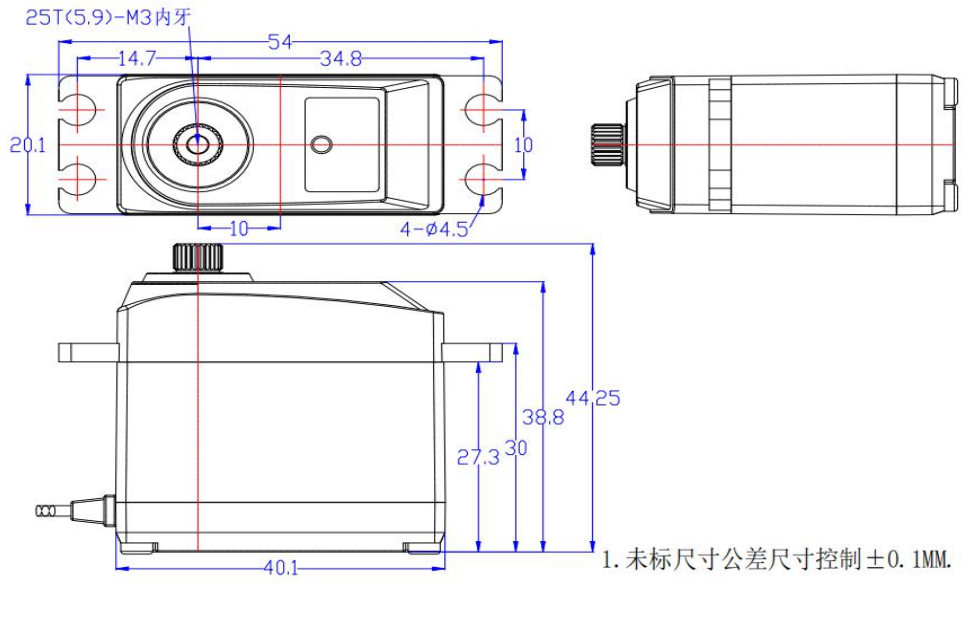

| 外形图 The Drawings: |
15kg.cm数码反馈舵机/6V
